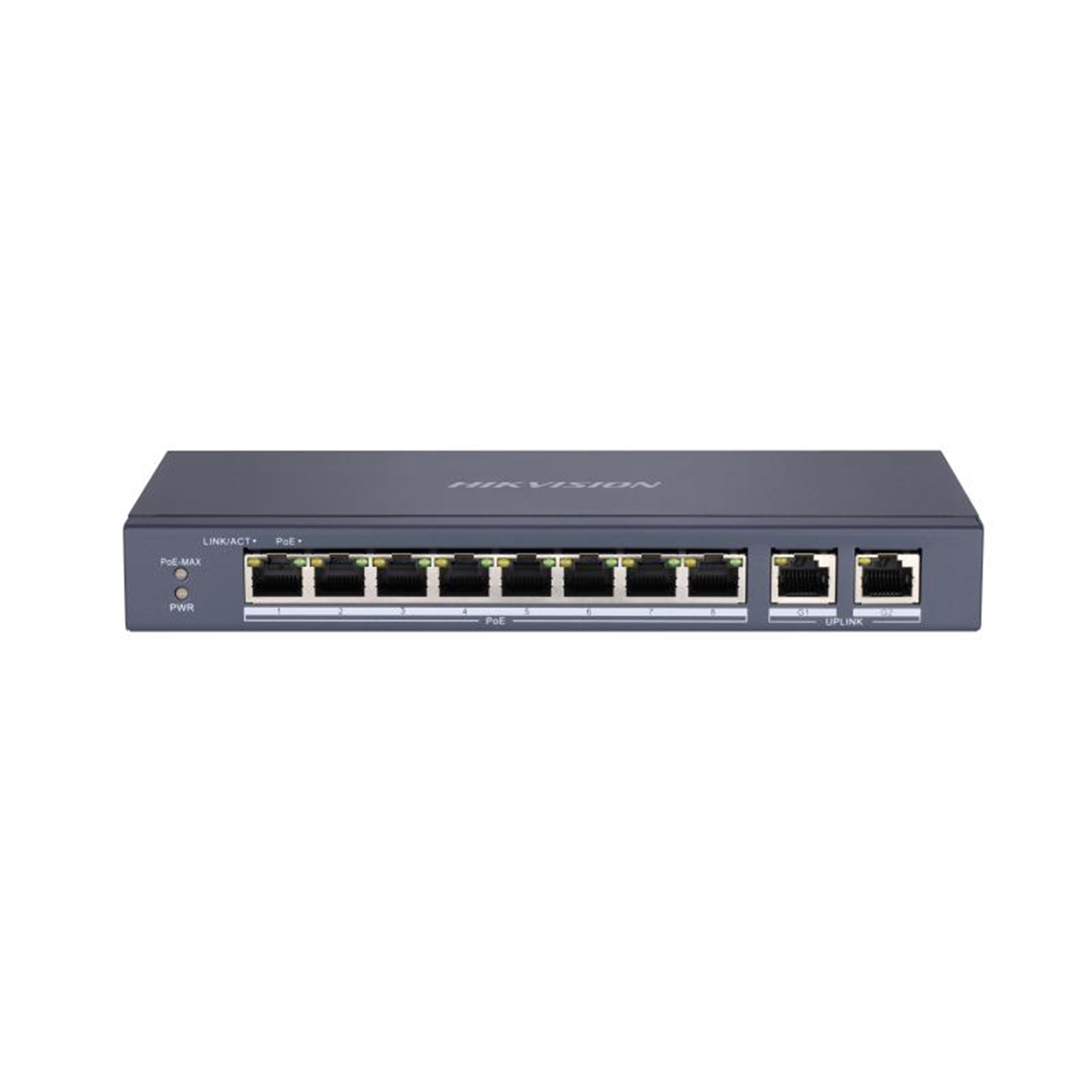

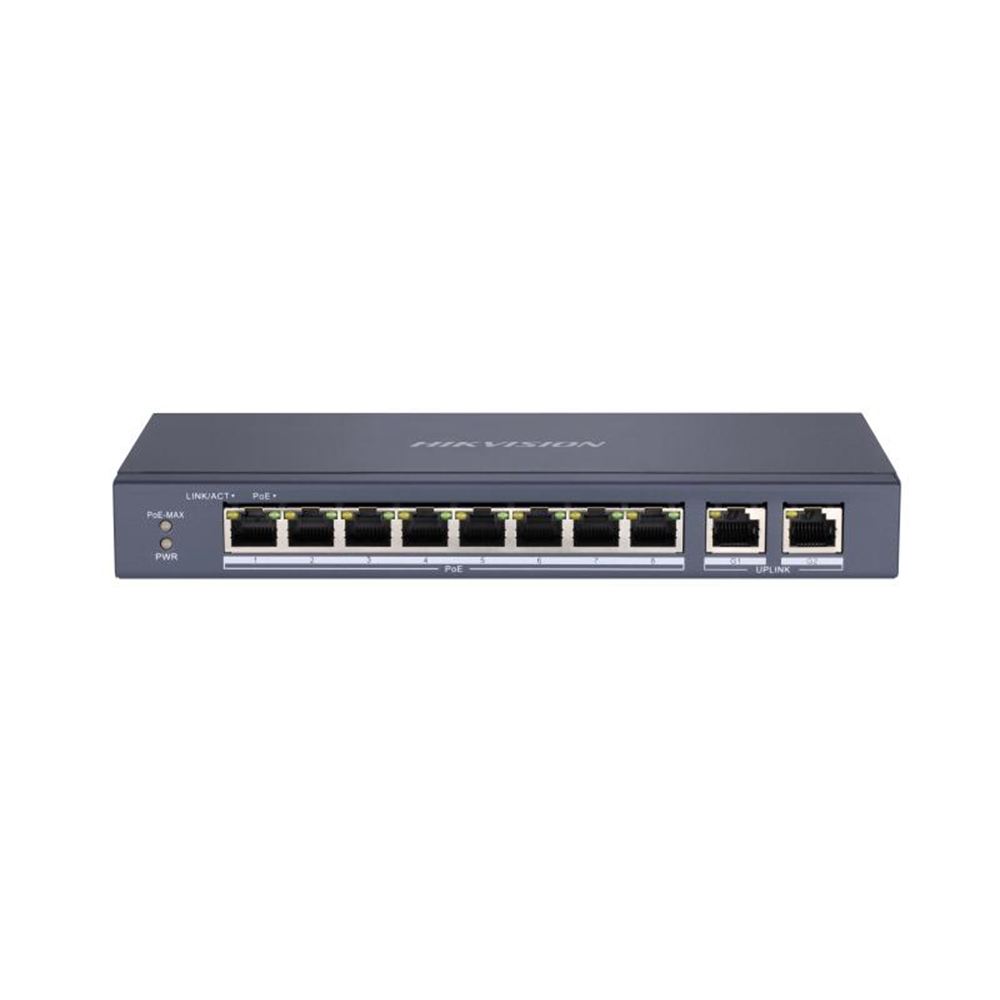

HIKVISION DS-3E0310P-E/M 10/100 8 PORT POE 2 PORT GIGABIT UPLINK FAST ETHERNET SWITCH

General
Shell
Metal material
Net Weight
0.555 kg (1.22 lb)
Gross Weight
1.20 kg (2.65 lb)
Dimensions (W × H × D)
217.6 mm × 103.35 mm × 27.8 mm (8.57'' × 4.07'' × 1.09'')
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
48 VDC, 1.35 A
Max. Power Consumption
65 W
Power Consumption in Idle
5 W
Installation Mode
Desk-Mounted,Wall-Mounted
Surge Protection
6 KV
Network Parameters
Ports
8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
MAC Address Table
8 K
Switching Capacity
5.6 Gbps
Packet Forwarding Rate
4.17 Mpps
Internal Cache
4 Mbits
Dialing Function
Long Range
Ports 1 to 8 : up to 300 m.

Long range performance may vary depend on camera model or cable condition.

PoE Power Supply
PoE Standard
IEEE 802.3af;IEEE 802.3at
PoE Power Pin
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
PoE: Ports 1 to 8
Max. Port Power
30 W
PoE Power Budget
60 W
Approval
EMC
FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety
UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (201165EU);

WEEE (201219EU);

Reach (Regulation (EC) No.19072006)
