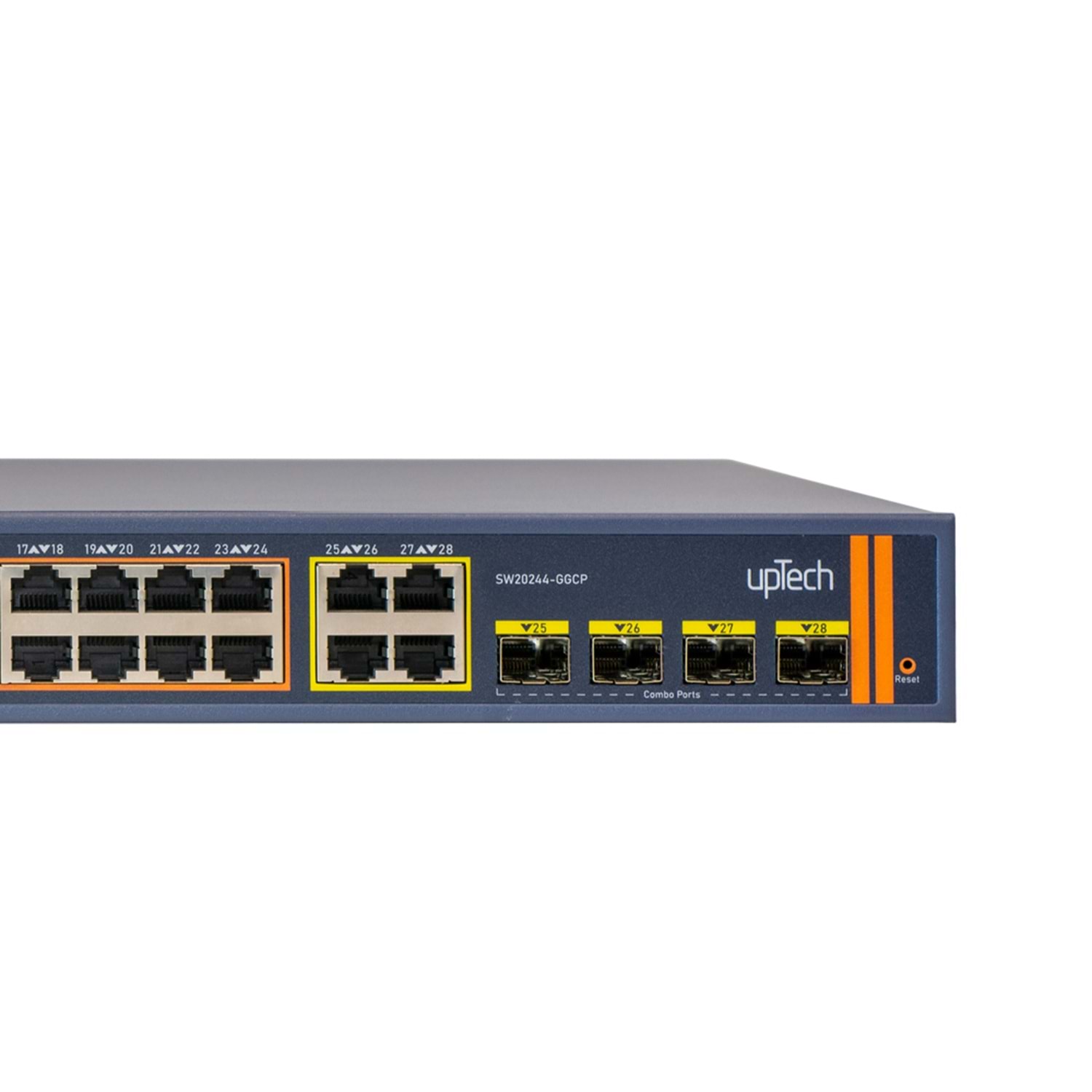

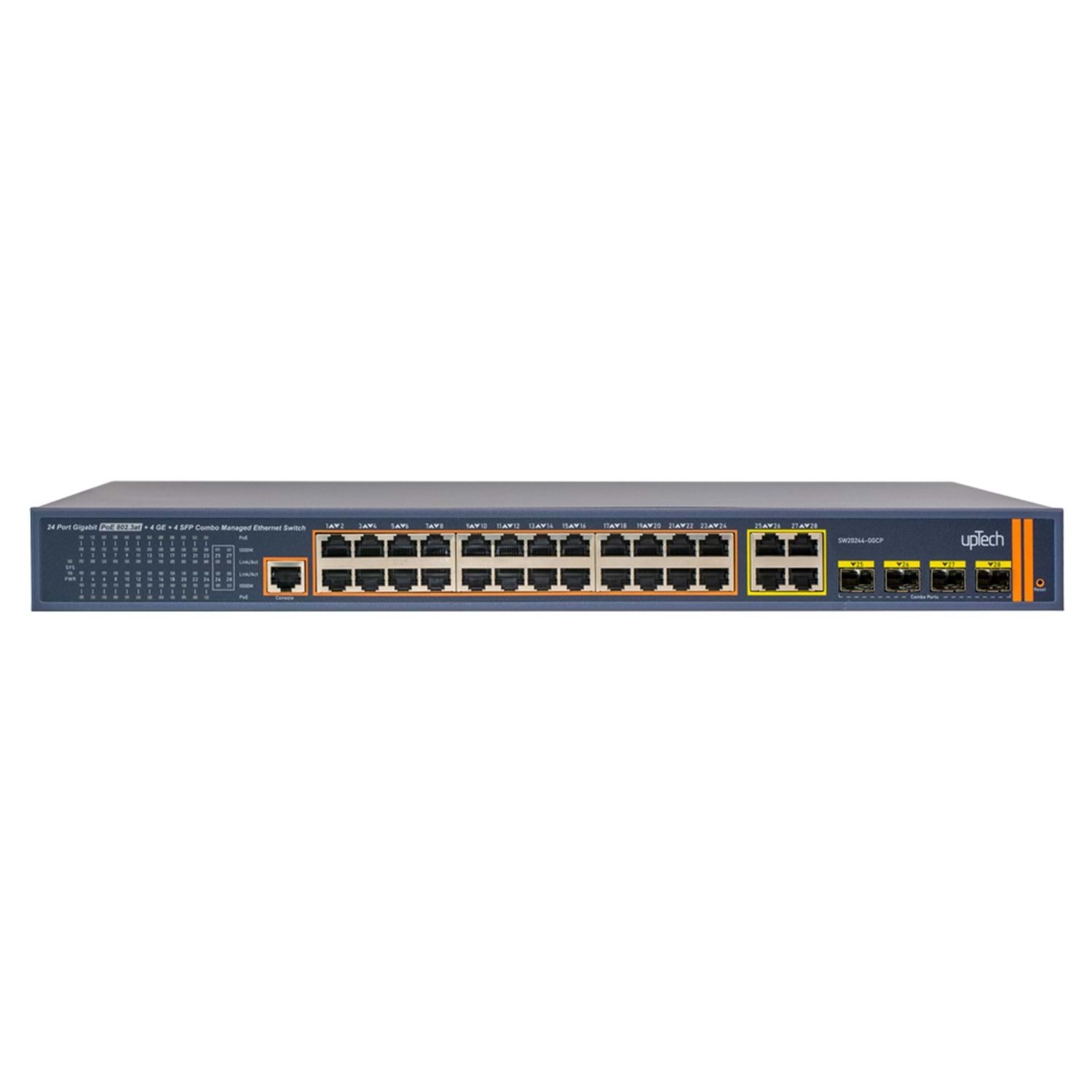

| SW20244-GGCP |
| Sabit Port | 24*10/100/1000Base-TX PoE, 4*1000Base-X |
| 4*Combo |
| PoE Port | 1-24 port support IEEE802.3 af/at |
| Konsol Port | 1*console port |
| Reset Anahtarı | 1 |
| CPU | 500M Hz |
| DDR | 1G DDR3 1333MHz |
| Buffer | Fully integrated 4.1M packet buffer |
| Flash | 16M |
| RAM | 128M |
| Bandgenişliği | 56 Gbps |
| Paket Yönlendirme | 41.7Mpps |
| Jumbo Frame | 10K |
| MAC Adres | 16K |
| Network Protokol | IEEE 802.3 |
| IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab 1000BASE-T |
| IEEE 802.3x |
| IEEE 802.3z 1000BASE-X |
| IEEE 802.3af/at |
| IEEE 802.3ad,IEEE 802.1ab LLDP |
| IEEE 802.3q ,IEEE 802.3p |
| IEEE 802.1w, IEEE 802.1d, IEEE 802.1S |
| STP(Spanning Tree Protocol) |
| RSTP/MSTP( Rapid Spanning Tree Protocol) |
| ERPS ring network protocol |
| Port Özellikleri | 10/100/1000BaseT(X) Auto |
| İletim modu | Store and Forward(full wirespeed) |
| İletim Mesafesi | 10BASE-T: Cat3,4,5 UTP(≤250 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| 1000BASE-TX: Cat6 or later UTP(≤1000 meter) |
| Toplam Güç | ≤400W |
| standby power≤10W |
| Full load without PoE ≤30w |
| LED Gösterge | PWR:Power LED |
| SYS:(System LED) |
| 1~24:(Link/Act LED=10/100M Link LED, 1000M=Gigabit Link LED, PoE LED=PoE indicator) |
| 25~28:(Combo Led) |
| Güç | Gömülü güç AC 100~240V 50/60Hz |
| MAX Akım 5.2A |
| MAX Güç 400W |
| Çalışma Sıcaklığı/Nemi | -20 - +55°C; 5% - 90% RH Yoguşmasız |
| Depolama Sıcaklığı/Nemi | -40 - +75°C; 5% - 95% RH Yoguşmasız |
| Ürün Ebatı (L*W*H) | 440mm*290mm*45mm |
| 515mm*375mm*95mm |
| Kurulum | 1U, Rack type,19”(optional machine hanger spare parts) |
| N.W/G.W (kg) | 3.6kg / 4.5kg |
| Yıldırım Koruma Seviyesi | 4KV 8/20us; |
| IP30 |
| Sertifika | CE mark, commercial; CE/LVD EN60950; |
| FCC Part 15 Class B; RoHS; |
| Garanti | 2 years (Accessories not included) |
| Yazılım Özellikleri |
| Network Protokolü | IEEE 802.3x |
| IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| IEEE 802.3ad |
| IEEE 802.1w, IEEE 802.1d, IEEE 802.1S, IEEE 802.1X |
| IPv4 / IPv6 | Support |
| MAC | 16K MAC address,auto aging and learning desteği |
| VLAN konfigurasyonu | Port-based VLAN, Dynamic VLAN, Guest VLAN desteği |
| Up to 4096 VLANs |
| Voice VLAN |
| Spanning Tree | STP(Spanning tree protocol) |
| RSTP/MSTP(Rapid spanning tree protocol) |
| ERPS(Ring network protocol), BPDU Guard |
| 802.1x |
| Port Aggregation | 8 grup toplama desteği, her grup 8 bağlantı noktasına kadar destekler; |
| Port Mirroring | Many-to-one port mirroring desteği |
| Port Güvenlik | Destekliyor |
| Loop Koruma | Loop protection, automatic recovery |
| Port İzolasyon | Aşağı bağlantı bağlantı noktaları birbirinden izole edilir ve yukarı bağlantı bağlantı noktasıyla da iletişim kurar |
| Flow Control | Half duplex based on Back pressure; |
| Full duplex based on PAUSE frame |
| Hız Limiti | Bandwidth management based on port input and output |
| Multicast Kontrol | IGMPv1/2/3 and MLDv1/2 Snooping |
| Multicast address management, multicast VLAN, multicast routing port static multicast address, 255 Multicast Group |
| DHCP | DHCP Snooping, DHCP Relay, DHCP Option 82 |
| Storm Suppression | Support unknown unicast, multicast , unknown multicast, broadcast type storm suppression |
| Storm suppression based on bandwidth adjustment and storm filtering |
| IPv4 Statik yönlendirme | Destekliyor |
| Güvenlik | User port+IP address+MAC address |
| ACL based on IP, MAC,Protokol type |
| Support security properties of number of MAC address based on port |
| QOS | 802.1p port queue priority algorithm,L2,L3 and L4 Protocol Type |
| Cos/Tos,QOS remark, DSCP |
| WRR(Weighted Round Robin), weighted priority rotation algorithm |
| WRR,SP,priority scheduling modes |
| Kablo | Auto-MDIX; auto detection on straight-through and cross-over cable |
| Tanıma modu | Port support auto negotiation function(self-negotiation transmission rate and duplex mode) |
| Sistem Bakım | Upgrade package upload |
| System log viewing |
| WEB recovery factory configuration |
| PoE Özelliği | Port Switch |
| Schedule arrangement, time switch |
| Voltage, current and power Display |
| System total power display and configuration |
| Crashes; support IP binding restart |
| Port power configuration |
| Over -power ındıcator |
| Ağ Yönetimi | WEB interface management, TACACS+ and Radius,NTP,SNTP |
| CLI management based on Telnet, TFTP, Console, SSH,RMON 4 Groups |
| SNMP V1/V2/V3 management |
