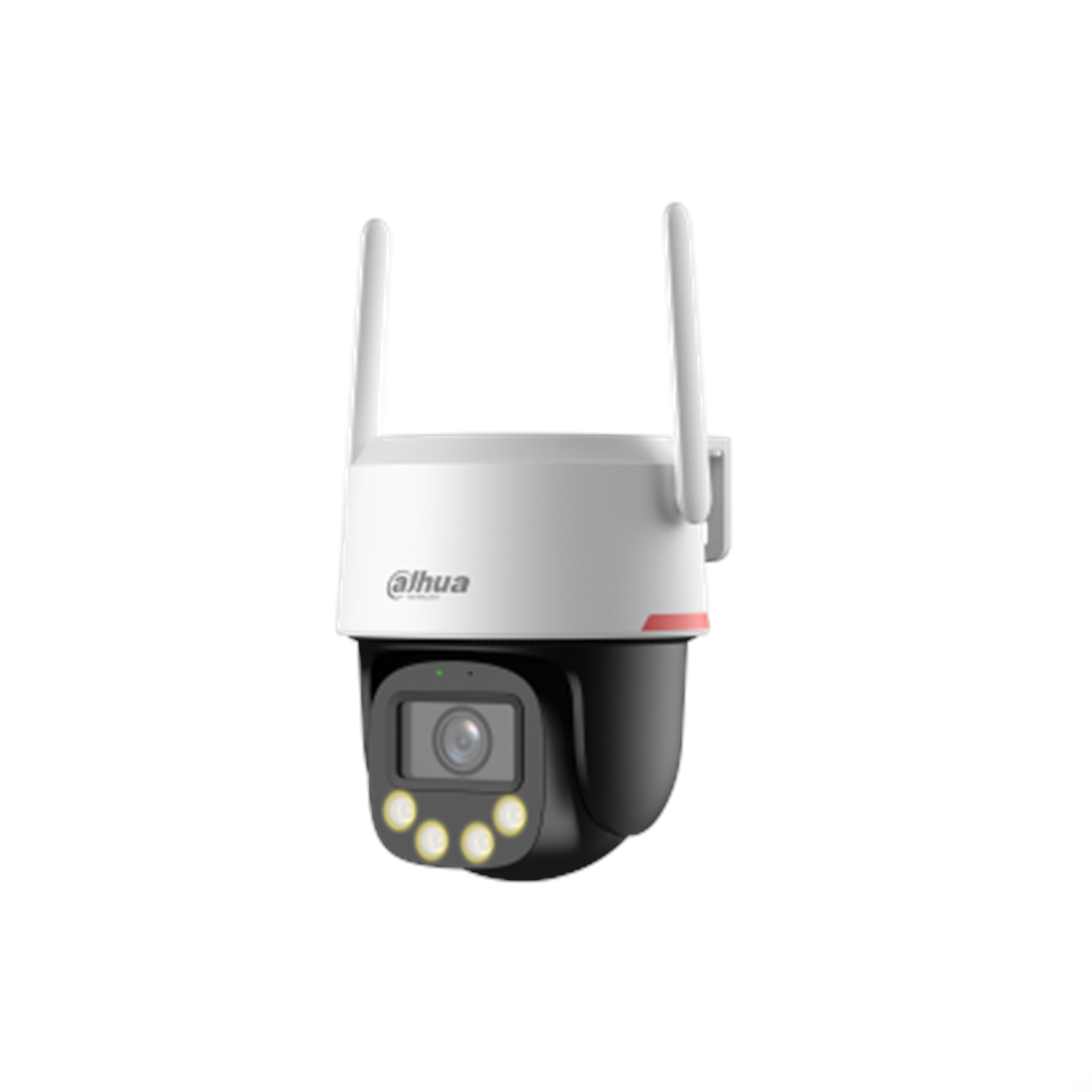

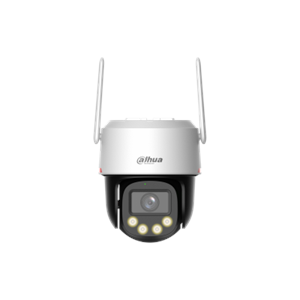

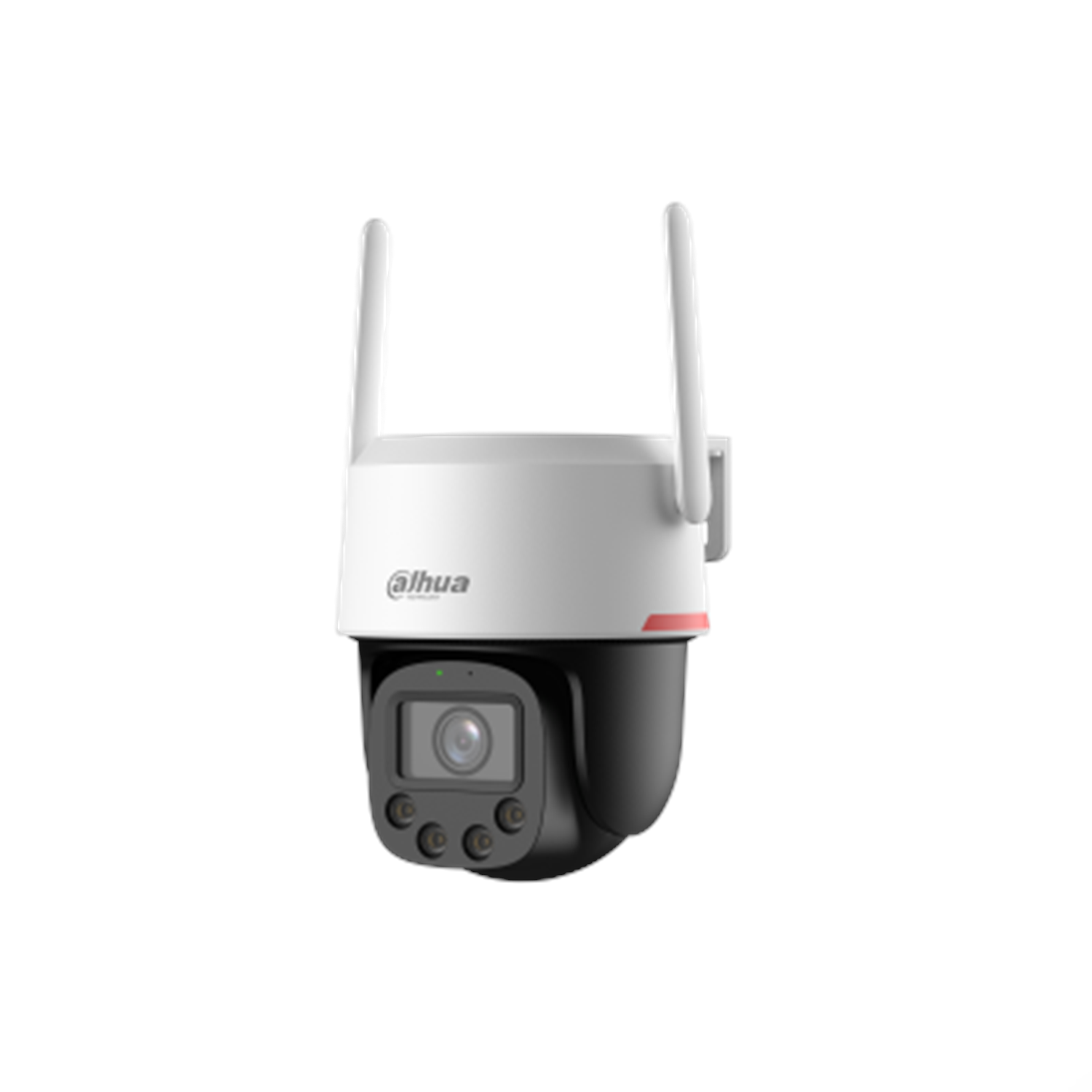

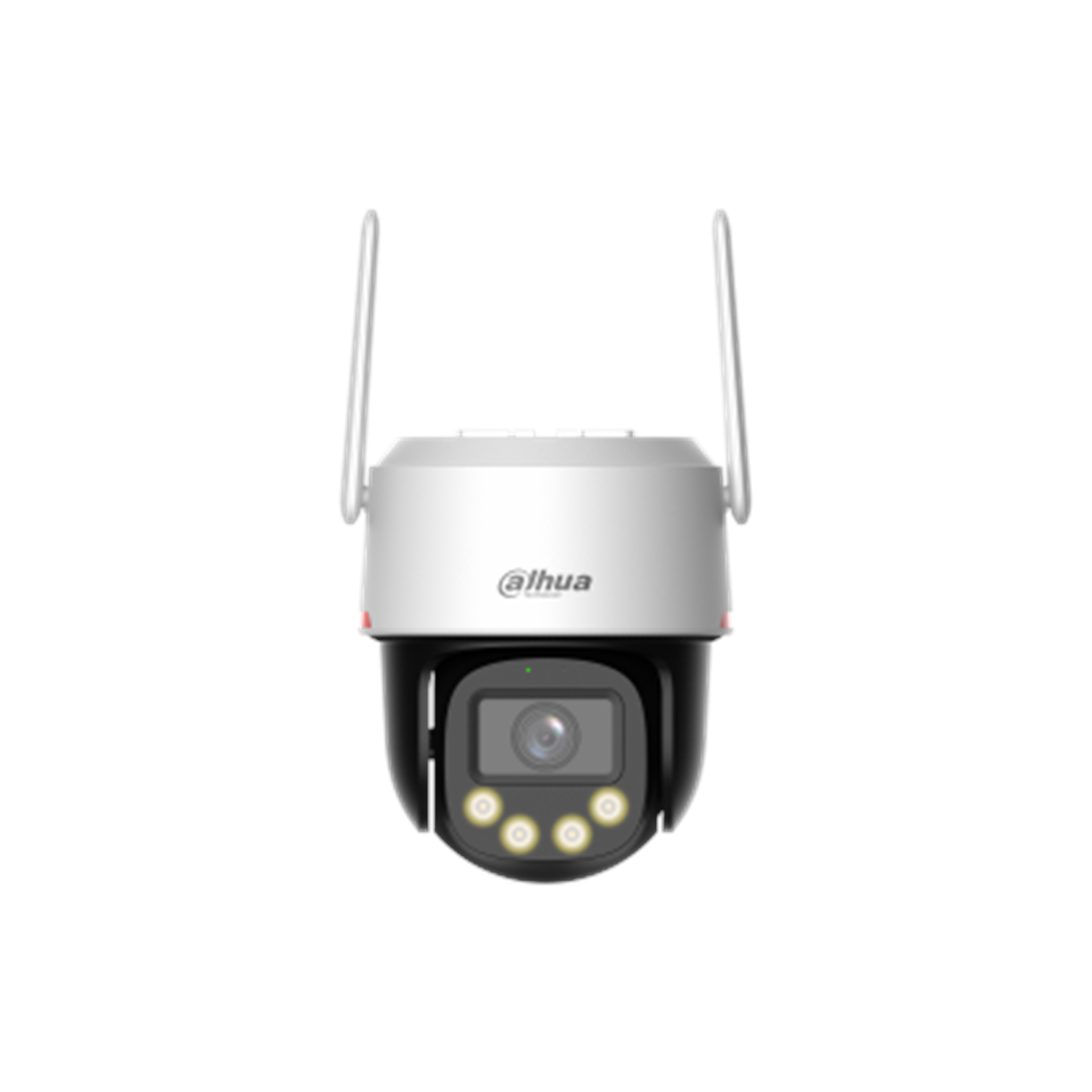

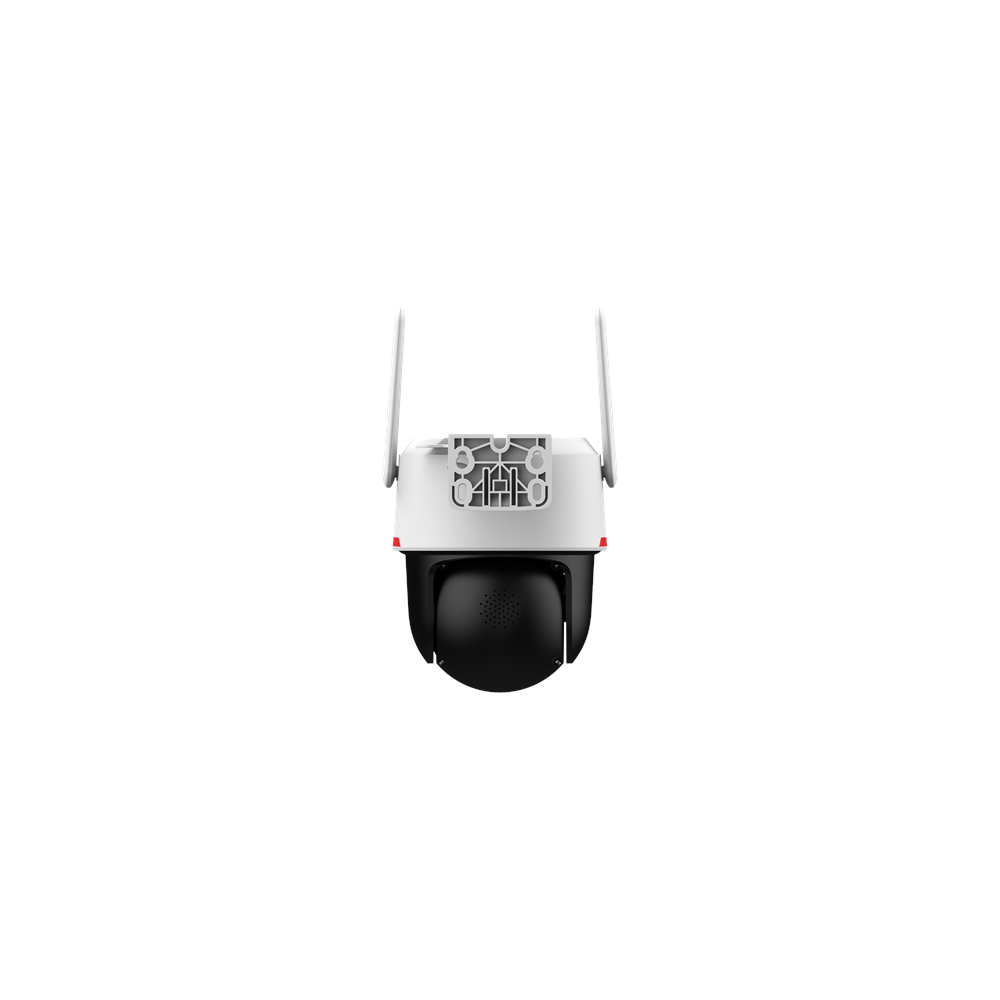

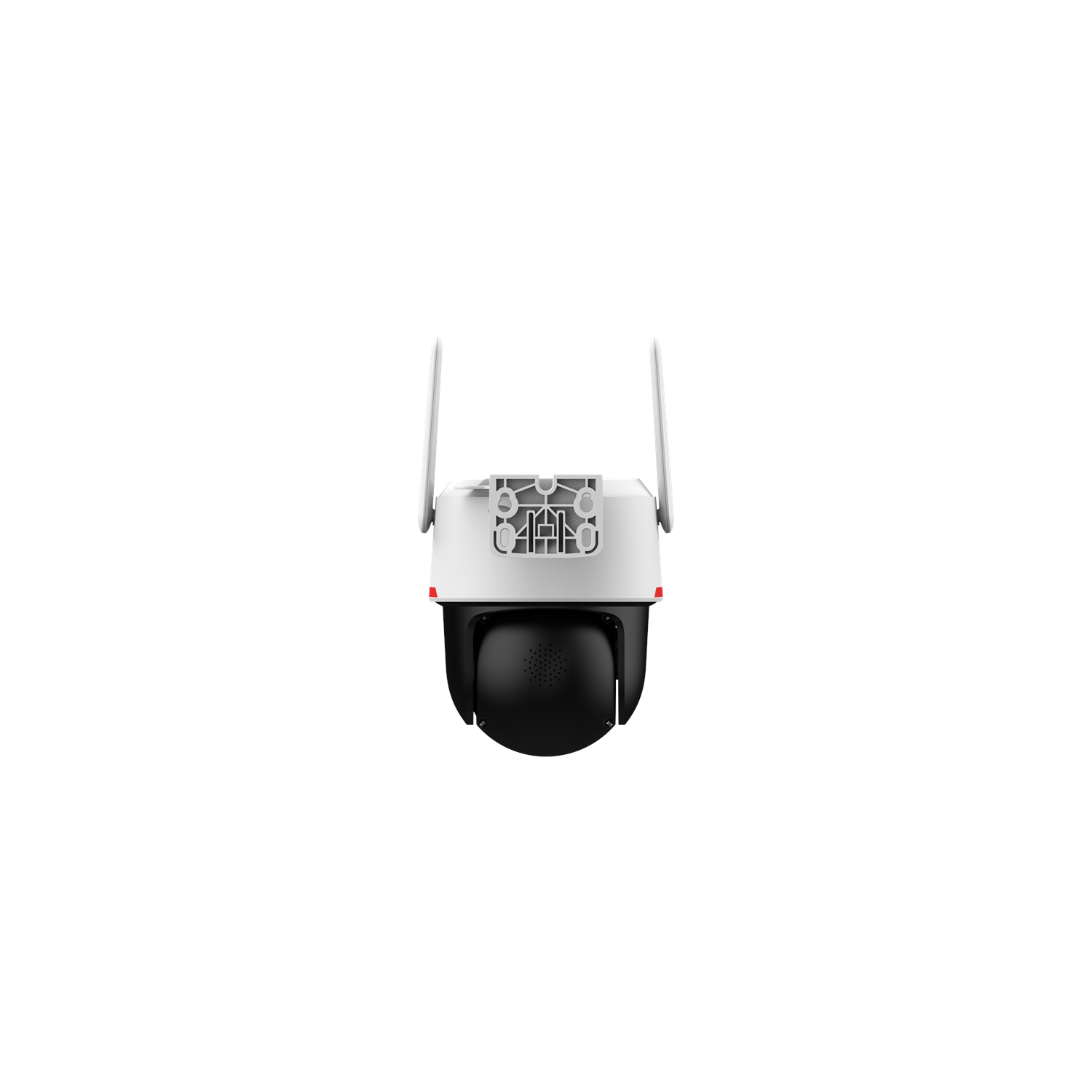

DAHUA IPC-PT2349DC1-SW-PV-PRO 3MP GECE RENKLİ WİFİ KABLOSUZ DIŞ ORTAM PT KAMERA

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

2304 (H) × 1296 (V)

Electronic Shutter Speed

1 s–1/100,000 s

Min. Illumination

0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (Illuminator on)

Illumination Distance

30 m (98.43 ft) (Warm light)

Illuminator Number

4 (Warm light)

Lens

Focal Length

3.6 mm

Max. Aperture

F1.0

Field of View

H: 81.6°; V: 44.3°; D: 96.4°

PTZ

Pan/Tilt Range

Pan: 0° to 345°; Tilt: 0° to 90°

Smart Event

Human Detection

Yes

Vehicle Detection

Yes

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG(Sub Stream 1)

Video Frame Rate

Main stream: 3M/1080p/720p@(1–15 fps)
Sub stream 1: 640 × 360/QVGA@(1–15 fps)

Day/Night

Color/B/W

WDR

120 dB

Motion Detection

Yes

Image Rotation

180°

Audio

Audio Compression

PCM, G.711A, G.711Mu

Built-in MIC

Yes

Built-in Speaker

Yes

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi Standard

IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax

Wi-Fi Frequency Range

2.4 GHz

Wi-Fi Transmission Rate

229 Mbps

Wi-Fi Pairing

Bluetooth pairing

Max. Transmission Power

?20 dBm@2400–2483.5 MHz

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI; SDK

Storage

Micro SD card (Up to 512 GB); FTP

Management Software

DMSS; NVR

Mobile Client

iOS; Android

Function

Abnormal Sound Alarm

Yes

Certification

Certifications

CE

Power

Power Supply

12 VDC, 1 A ± 10%

Power Consumption

Basic: 3 W
Max. (Basic power consumption + WDR + Light on + PTZ operation): 9 W

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

?95%

Protection

IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

153.5 mm × ?129.3 mm (6.04" × ?5.09")

Net Weight

0.60 kg (1.32 lb)
