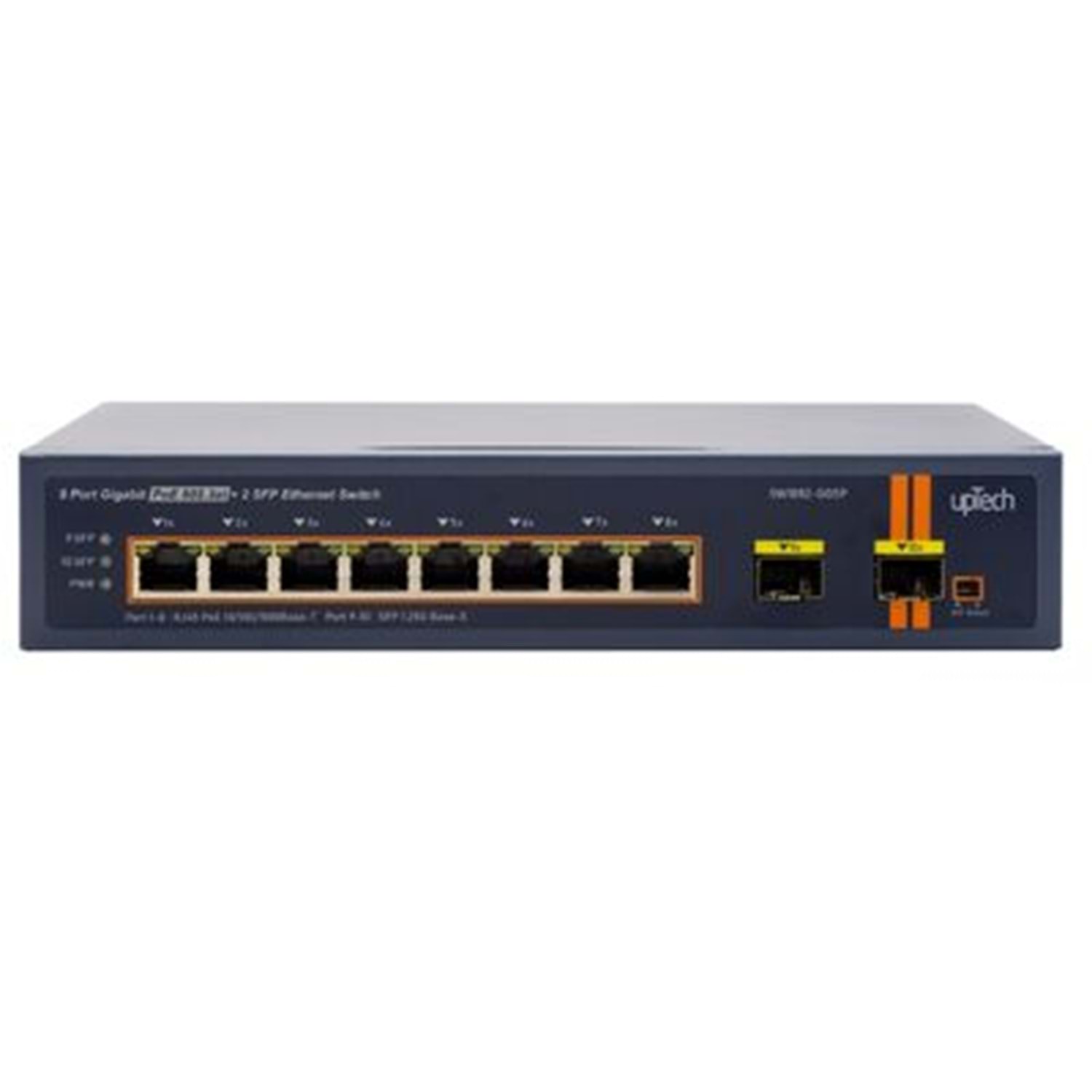

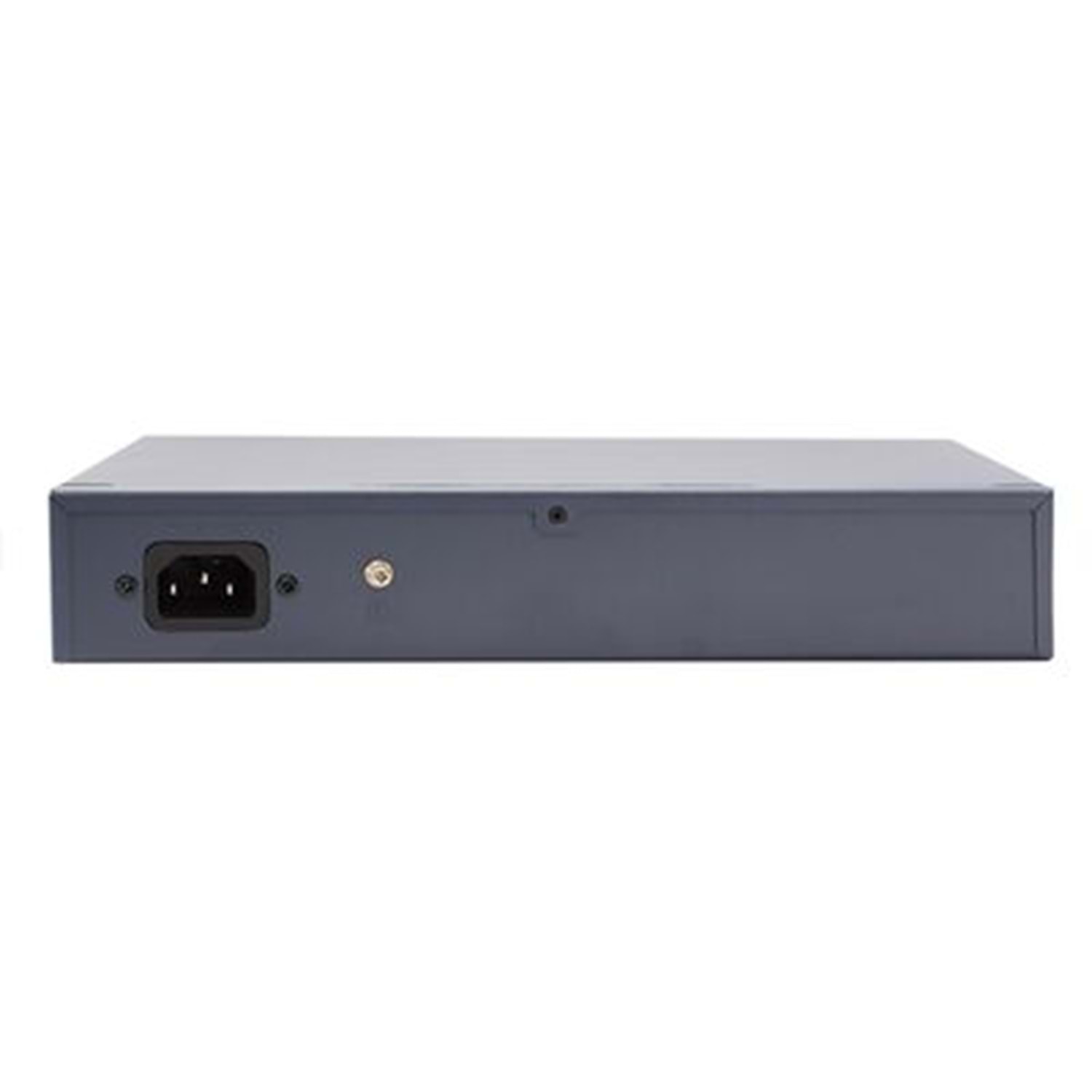

| SW1082-GGSP |
| Network Connector | 8*10/100/1000BASE-T RJ45 auto MDI/MDIX ports |
| 2*1000 Base-X SFP Slots |
| PoE Ports | 8 10/100/1000Mbps POE PSE port |
| LED Display | Power Indicator: PWR(green). |
| Network Indicator: Link(yellow) |
| PoE Working Indicator: PoE(green) |
| Thermal Fan | Fanless Design |
| Led Indicators | Power Indicator : PWR (green) |
| Network Indicator : Link (yellow) |
| PoE Working Indicator : PoE (green) |
| Switch Arhitecture | Store and forward |
| Transmission Model | IEEE802.3X full-duplex and Backpressure half-duplex |
| Switch Performance | Backplane bandwidth - 20Gbps |
| Packet forwarding rate - 14.88Mpps |
| MAC address - 8k |
| Power Requirement | AC100-240V 50/60Hz |
| ESD Protection | 6KV ESD |
| Dimension (WxDxH) | 255mm x 160mm x 44.5mm |
| Weight | 1.5Kg |
| Power Over Ethernet (PoE) Specifications |
| Network standard | IEEE802.3i 10 BASE-T |
| IEEE802.3u 100 BASE-TX |
| IEEE 802.3ab Gigabit 1000BASE-T |
| IEEE802.3x Flow Control |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| IEEE802.3az EEE |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Supply Type | 1/2(+), 3/6(-) End-span |
| PoE Power Output | Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power budget | 120W |
| Environment |
| Environment Specification | FCC Part15 Class A,CE.RoHs |
| Operating temperature: -10°C~45°C, operating humidity: 10%~90% |
| Safety | Storage temperature: -20 °C~70°C, storage humidity: 5%~95% |
