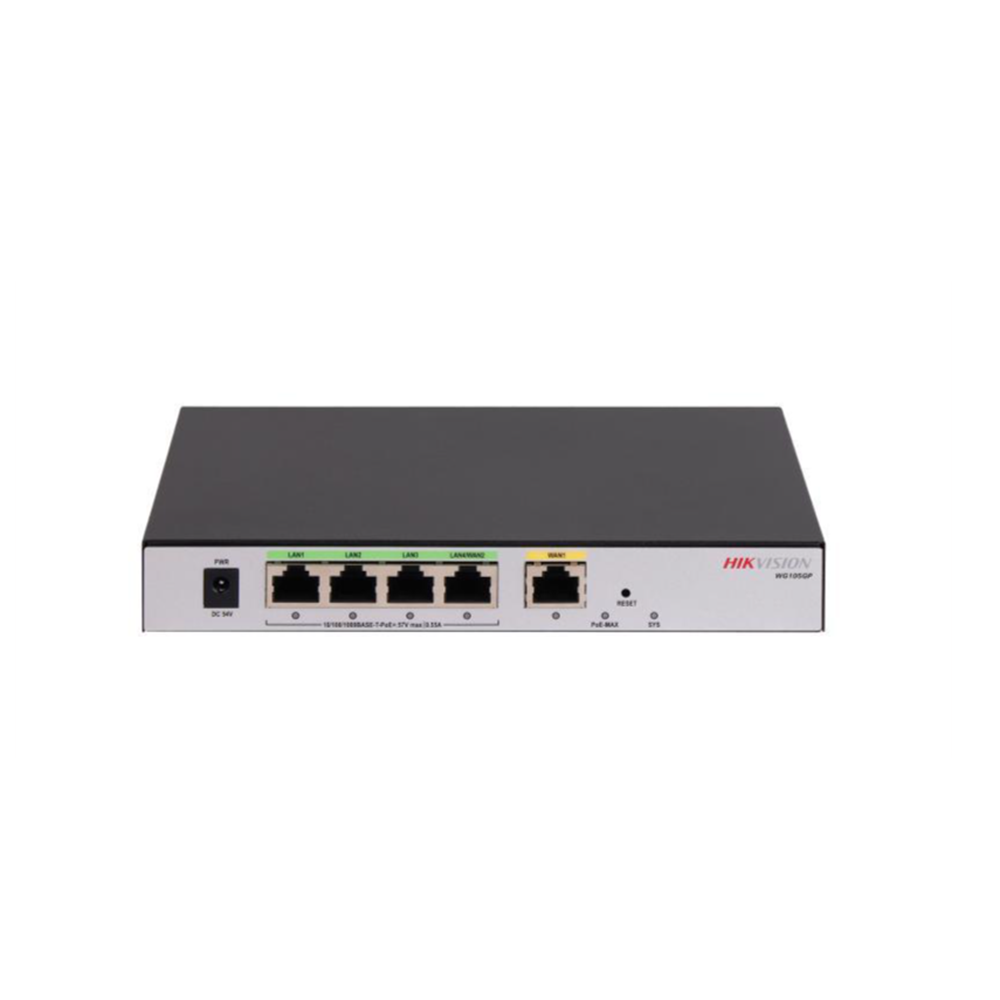

HIKVISION DS-3WG105GP-SIAll in One 5 Port PoE Router

General
Shell
Metal
0.5 kg (1.1 lb)
Working Temperature
0 °C to 40 °C (32 °F to 104 °F)
Working Humidity
5% to 95% (no condensation)
Storage Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity
5% to 95% (no condensation)
Product Dimensions (W × H × D)
190 mm × 125 mm × 27 mm (7.48'' × 4.92'' × 1.06'')
Packing List
AC Router × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Power Supply Adaptor × 1,Power Cord × 1
Power Consumption
Max. 65 W
Hardware Specifications
WAN Port
1 Gigabit WAN Port
LAN Port
4 Gigabit PoE LAN Ports with 1 LAN/WAN Switchable
PoE Port
PoE Ports: Ports 1to 4 , IEEE802.11af/at
Forwarding Capacity
10 Gbps
RAM
256 MB
Flash
128 MB
Power Supply
54 VDC, 1.17A
Reset Button
Hardware Resetting Button
WLAN Parameters
Maximum Number of Managed APs
32
Maximum Number of Clients
100
Bandwidth
1 Gbps
Networking Access
Support fixed IP address, DHCP automatic address acquisition, PPPoE dial-up and other methods
Number of WAN Access
Up to 2 WAN Load balancing
Multi-WAN Load Balancing
Load balancing based on the destination address of the carrier,Load balancing based on link bandwidth,Load balancing based on user (IP address),Policy-based routing (PBR) for forwarding over specified lines,End-to-end link detection and backup functions
CAPWAP Tunnel
Auto AP serial number entry,AC discovery (DHCP option43, DNS),Assign basic AP network parameter through AC (Supported: Static IP, VLAN, Connected AC address)
Access Control
Open System,Shared-Key,WPA,WEP-64/128, dynamic WEP,WPA2,WPA3
Software Specifications
Layer 2 Protocol
ARP,VLAN,ARP (gratuitous ARP)
Network Feature
IPv4,DDNS,UPnP,DHCP Server,NTP Client,Multicast,PIM,MLD Snooping,IGMP Snooping,Multicast group
VPN
IPSec VPN:,Support 100 IPSec connections,Support AH and ESP protocols (ESP supports 3DES and AES encryption algorithms),Support IKE to automatically establish SA,Support MD5 and SHA-1 authentication algorithms,Support IKE main mode and aggressive mode,Support NAT-T traversal,Support IPSec connection configuration by domain name (DDNS)
NAT
40000 Max. Access
AP Management
AP Discovery,AP Management,Support Multi-SSID Configuration,SSID Hiding,Channel Setting
User Management
User Authentication,Support user blacklist and whitelist,Controls the number of access users:,Based on APs,Based on SSIDs,Logs out users in any of the following ways:,Using RADIUS DM messages,Using commands,Support various methods to view information:,Displays the number of online users in an ESS, AP, or radio.,Collects packet statistics on air interface based on user.
Security
Firewall Policy,DDoS Defending,IP/MAC/URL Filtering,ARP Defending,Support DDoS attack prevention and statistics,Support Prevent WAN port ping,Support Prevent TCP syn scan,Support Prevent TCP Stealth FIN scan,Support Prevent TCP Xmas Tree scanning,Support Prevent TCP Null scan,Support Prevents UDP scanning,Support Prevent Land attacks,Support Protects against Smurf attacks,Support Protects against WinNuke attacks,Support Protect against Ping of Death attacks,Support Protect against SYN Flood attacks,Support Protect against UDP Flood attacks,Support Protect against ICMP Flood,Support Protect against IP Spoofing,Support Prevent Fragmented Packet Attack,Support Protect against TearDrop attack,Support Protect against Fraggle attack
System Maintenance
Support device management via web.,Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.,Support remote management via Hik-Partner Pro. ,Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.,Support port mirroring for fault locating.
Version Upgrade
Support upgrade by Web,Support upgrade by HPP
Hik-Partner Pro
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display topology information.

4. Display the alarm status.

5. Restart ports and devices.

6. Remotely upgrade the device.

Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio
EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
